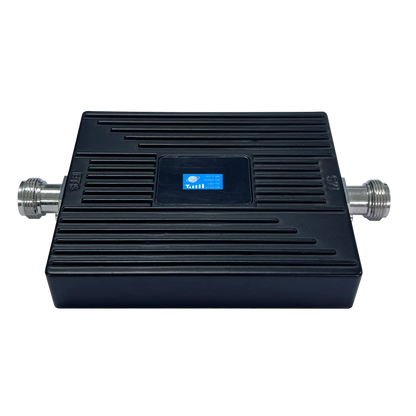

New Mini Repeater 1800Mhz Dcs 4G Mobile Phone Signal Booster Cellular Signal Amplifier Network Repeater

SPECIFICATIONS

Application: Home Office

Brand Name: SignalSmith

Color: black

Coverage: 200 Sqm

Frequency: 1800MHz

Gain: 60dB

Model Number: SS73-D

Network: 4 G,FDD

Output Power: MAX:18dBm

Place of Origin: Guangdong, China

Power Supply: DC 5V/1A

Product Size: 140x100x20mm

Product weight: 258g

Type: signal booster

work band: Band3

Products Description

Product Paramenters

Technique Specification
Model No			SS73-D
Parameter data			Uplink	Downlink
Frequency Rang	DCS	1710~1785 MHz	1805 ~ 1880 MHz
Output Power			17 ±2dBm	17 ±2dBm
Gain			55±2 dB	60±2dB
Impedance			50 ohm
Mechanical Specification

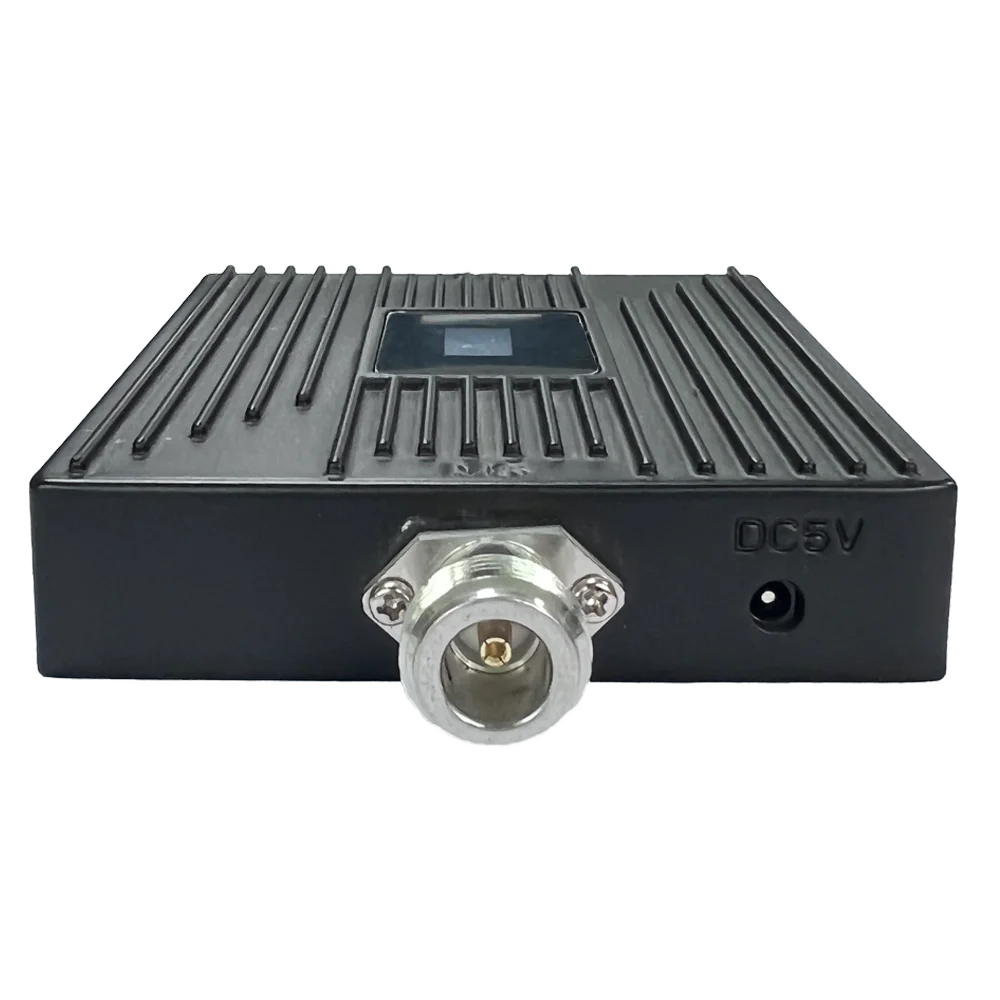

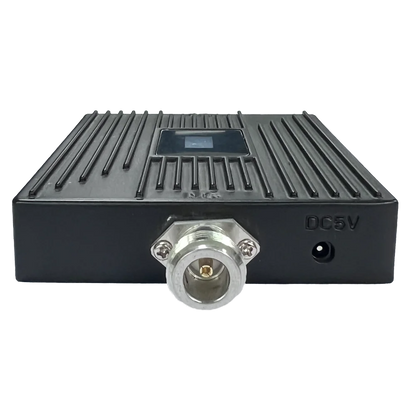

RF Connector			N-Female
Dimensions (D x W xH )			140*100*20(mm)
Weight			≤ 0.25Kg
Operating Temperature			-10℃ ~ 55℃

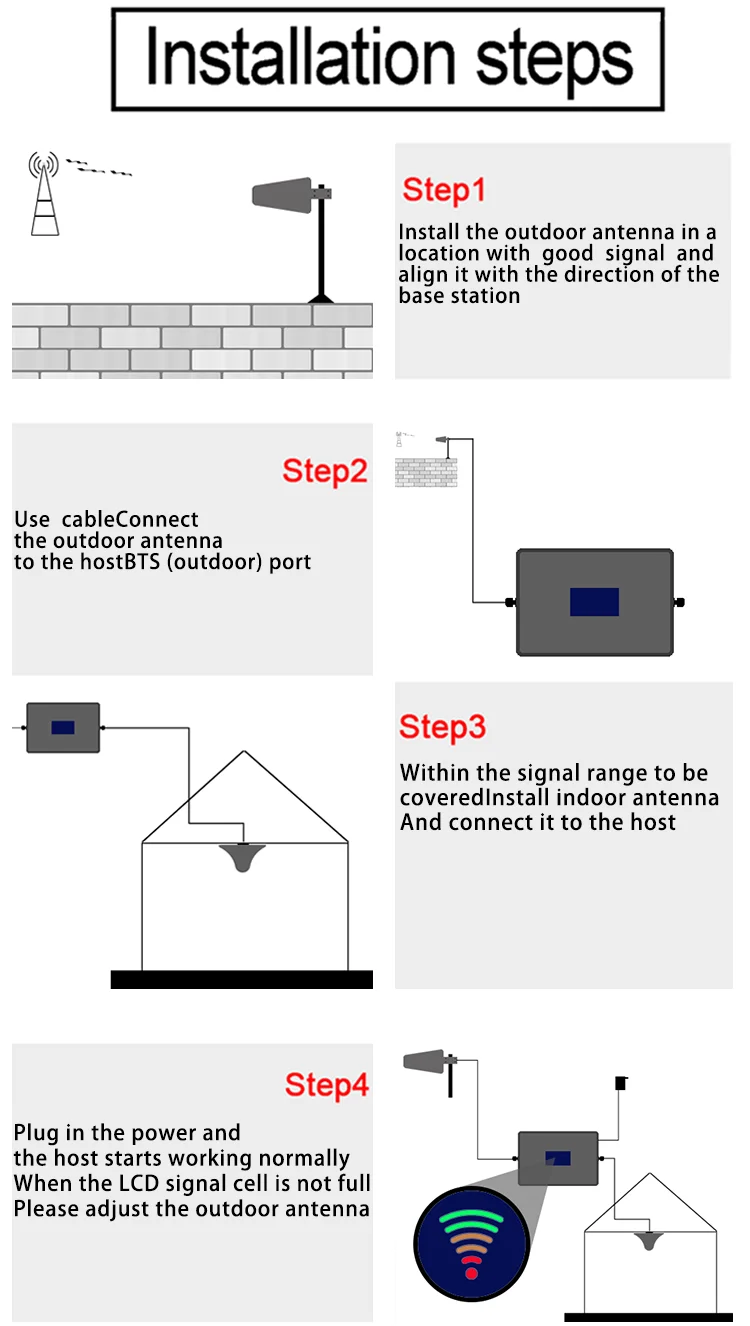

Product Usage

Attention!

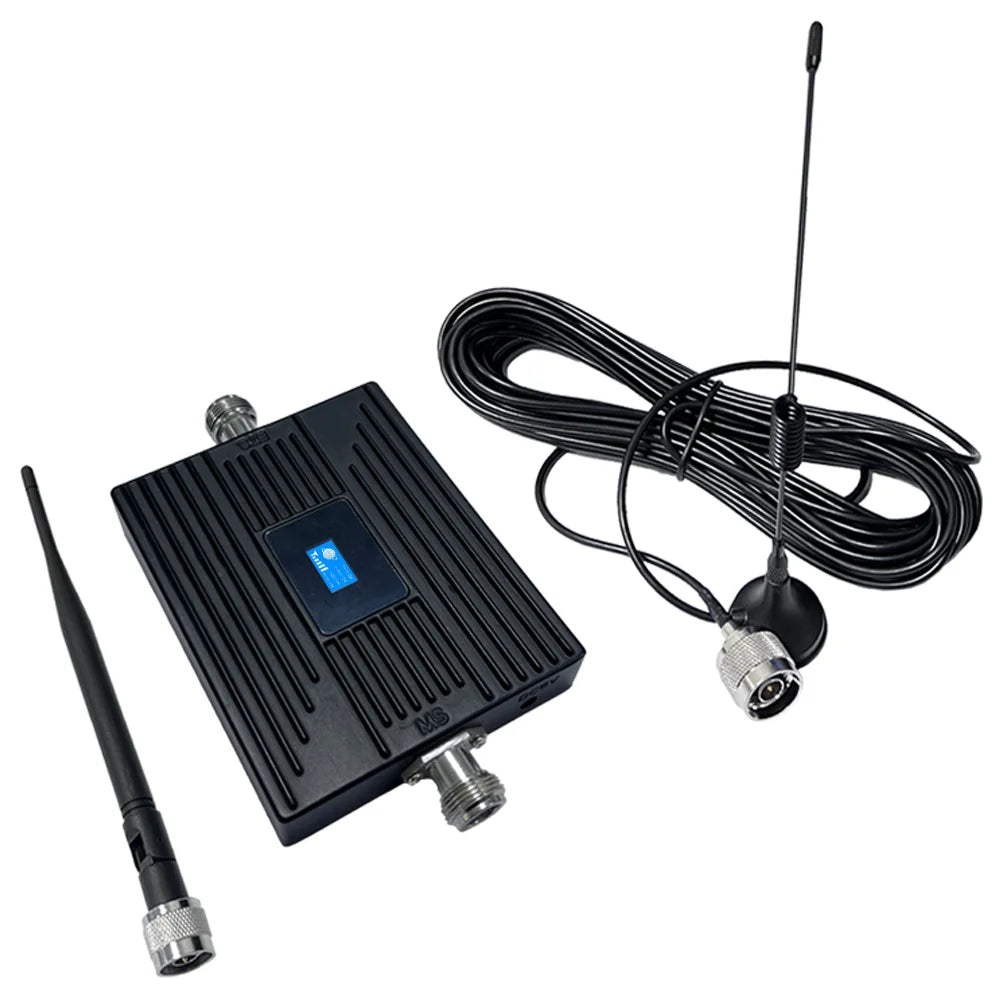

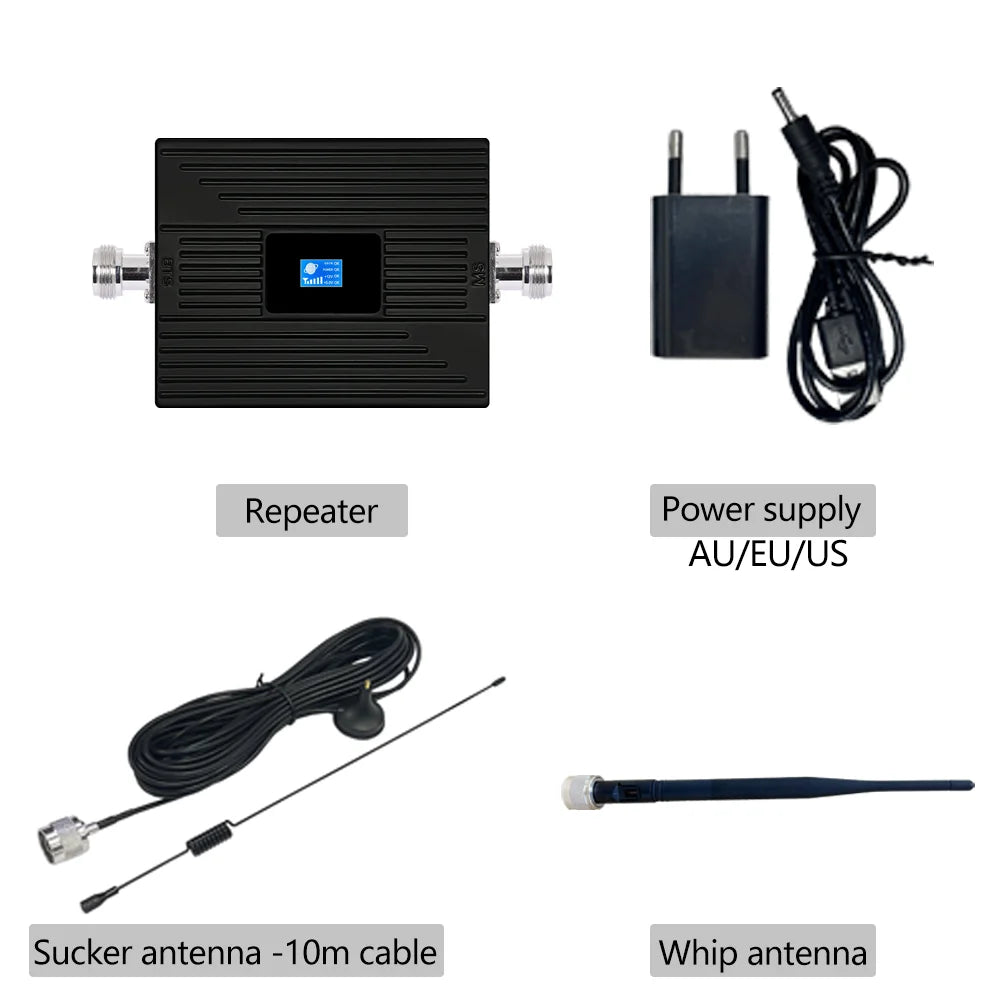

The indoor and outdoor antennas and other accessories involved in the installation method are only for installation instructions and are not included in the product. The product only contains the signal repeater host and power adapter.If you need other accessories, you can contact us or enter other links in the store to purchase.

Application&Note

Product Introduction of mobile phone signal amplifier:

The product can be used in mountain areas, urban areas, towns, villages in the city,undergroundwarehouse, basement, underground parking lot without signal area.The function is to draw (absorb) the stable signals outside to the room and then amplify and diffuse the signals to cover the wholeeffective area, so as to provide stable and high-quality signals to the equipment in need of signals.

Please note before purchasing

（1）.Please confim that the operator base station frequency band of your SlM card is suitable for the effectiverequency of this device （2）.Make sure you get a good signal outside your house that you want to amplify.3-5 bar signal can be displayed onyour phone (at least -70dB-90dB is captured).Otherwise. the signal amplifier will not improve your signal

Reasons for purchasing mobile phone signal repeater: 1. Signal repeater can improve signal in weak signal environment. 2. The signal booster does not need additional wires to connect to your phone, nor does it need any additional accessories. 3. Practical, portable, beautiful and easy to install. You don't need to hire anyone to install the equipment. Install according to the instructions. 4. All mobile phones within the coverage range and suitable for the booster frequency can get signal improvement, and there is no limit on the number of mobile phones 5. The signal repeater can cover different coverage ranges: from small to large. In this case, you can use the corresponding repeater according to your environment 6. Our equipment is safe. The signal repeater will not generate any radiation. 7. Factory direct sales, all mobile phone signal problems can be solved

Packing&Shipping

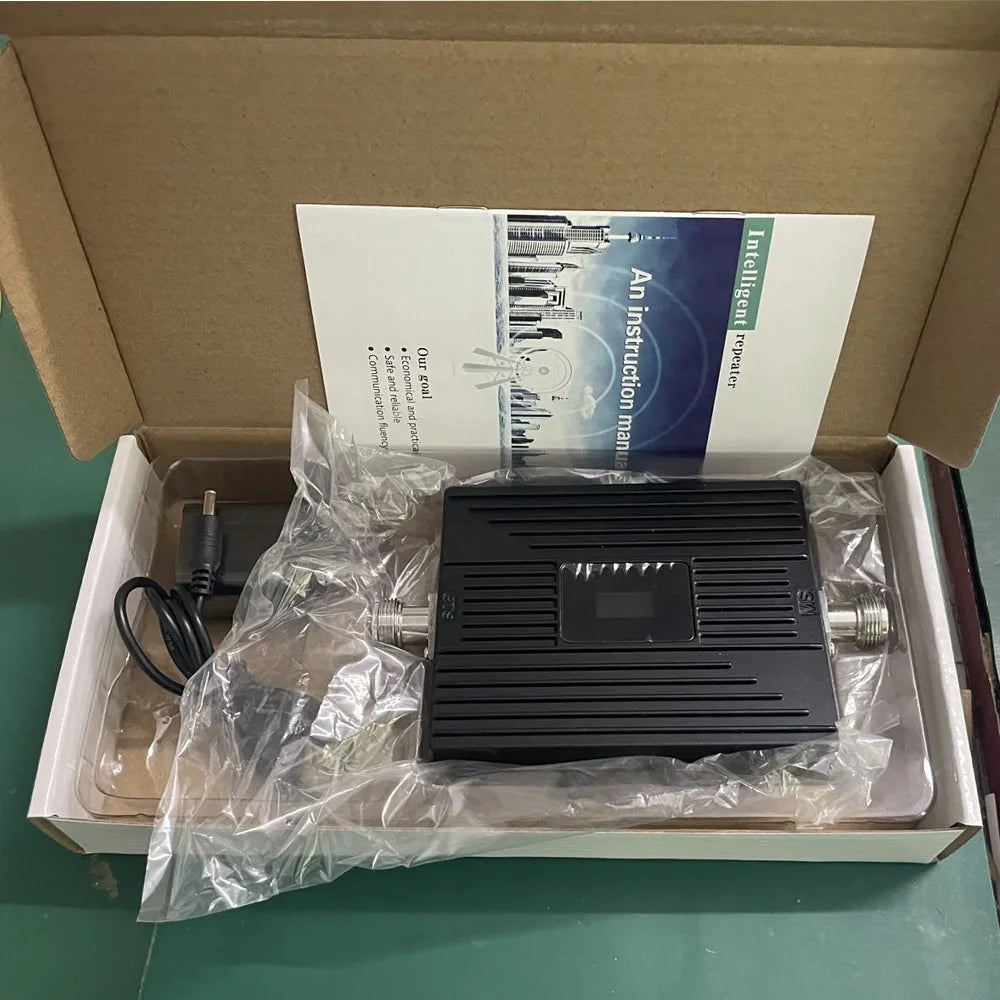

Packaging Details：Each signal repeater is individually packaged, using a neutral carton to fully protect the product from damage，Each carton size is 64 * 43 * 31cm, and 70 mini repeaters can be placed.

Delivery Detail：within 7 weekdays after all confirmed.

Shipping Method：by air,land,sea or expression courier.

Other frequencies

Single band

700Mhz、800Mhz、850Mhz、900Mhz、1800mhz、1900mhz、2100mhz、1700mhz、2600mhz.

Dual band
900/1800MHz、900/2100MHz、850/1800MHz、850/1900MHz、850/900MHz、1800/2100MHz、1800/2600MHZ、2100/2600MHz、1900/1700MHz.

Tri band
900/1800/2100MHz、900/2100/2600MHz、850/1800/2100MHz、900/1800/2600MHz.、850/1700-2100/1900MHz、800/1800/2100MHz，800/2100/2600MHz.

Quad band
B12(700)/850/1700/1900MHz、850/1700/1900/2600MHz、B28(700)/850/1700/1900MHz、900/1800/2100/2600MHz、800/900/1800/2100MHz、850/900/1800/2100MHz.

Five band.
800/900/1800/2100/2600MHz、850/900/1800/2100/2600MHz、700/850/1700/1900/2600MHz

Note: Frequency band can be customized
