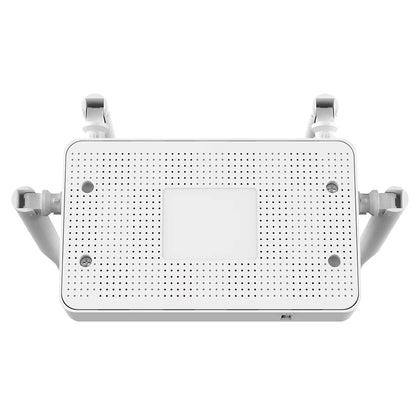

2.4G Home Router ZBT WE1626 300Mbps Wireless Wifi 19216810 1 Home Use Wifi Router

SPECIFICATIONS

2.4g wi-fi transmission rate: 300 Mbps

5G Wi-Fi Transmission Rate: None

Antenna: 4* 5dBi Antennas

Brand: WZHL

Chipset: MT7620N

Encryption Type: WPA2-PSK,WPA2,WPA2-Enterprise,WPA

Flash: 8MB Nor Flash

Interface: 1WAN+4LAN

Power supply: DC 9V 1A

RAM: 64MB DDR2

Supports WDS: No

Supports WPS: No

WAN Ports: 1 x10/100Mbps

WIFI: 802.11 B/g/n

WiFi Transmission Standard: 802.11n

Wireless Speed: 300Mbps

application: 2.4g

function: FireWall,QoS,VPN,SDK available

lan ports: 4

max. lan data rate: 300Mbps

place of origin: Guangdong, China

private mold: Yes

products status: New

standards and protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n

type: Wired

wifi supported frequency: 2.4G

wired transfer rate: 10/100Mbps

with modem function: No

Product Description

WL1626 used the MT7620N, CPU up to 580Mhz, installed the large capacity SDRAM and the high speed SPI FLASH, provide 5 10/100Mbps Auto-MDI/MDIX port and 2.4Ghz wireless network, could meet many kinds of wireless application, much better cost-performance.Wireless Support 802.11b/g/n network protocol, transmission rate up to 300Mbps, 4 external antennas, cover a larger area.Software The most stable system OS, easy use, for home user.

Feature: 1）Support 802.11n / 802.11g / 802.11b network protocol, the max transmission rate could be 300Mbps 2）Support 802.113 / 802.11u protocol, 5* 10/100Mbps Auto MDI/MDIX 3） USB 2.0 date interface

4）Support one button RESET function

5）Support WEP, WPA, WPA2 and other security encryption modes

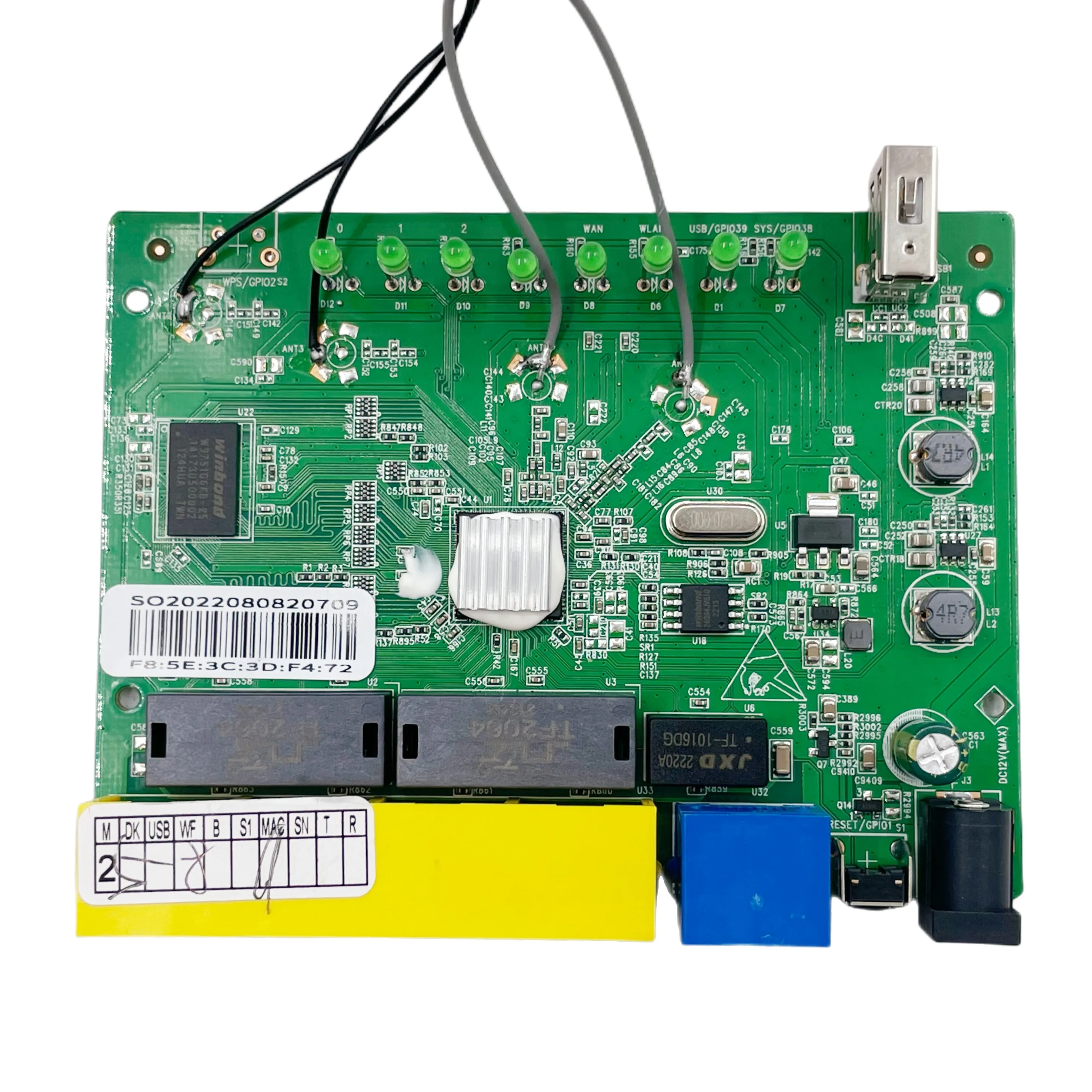

Hardware&software (support OpenWRT)

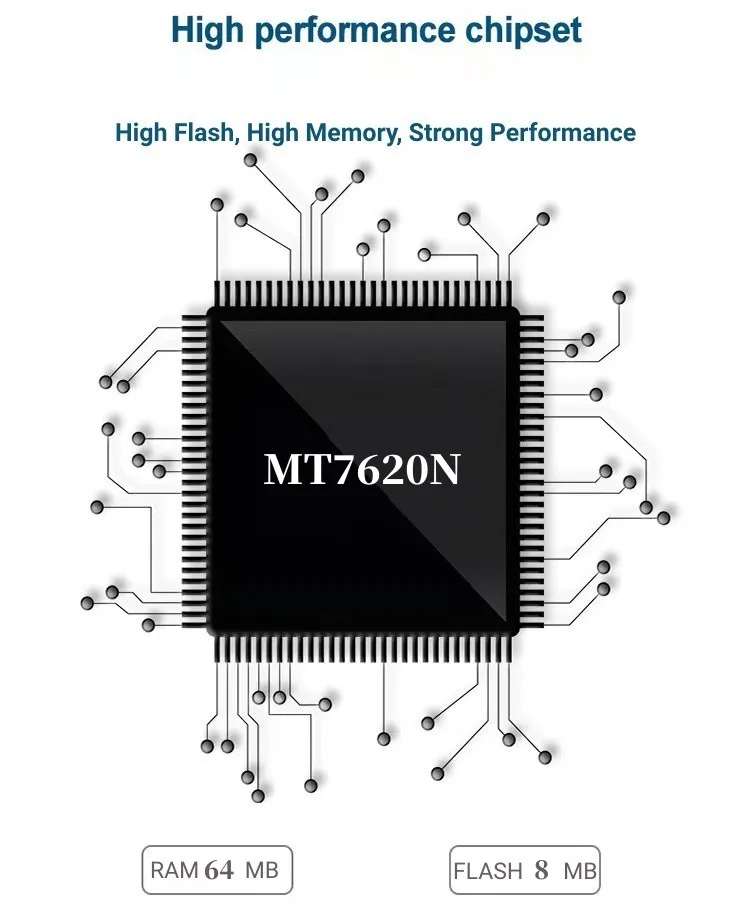

Processor	MT7620N/600MHZ
2.4G WIFIchip	MT7620N integrates 2.4G WIFI functions IEEE 802.11n/g/b, maximum rate 300Mbps
Memory	SOC built-in DDR2 64MB
Flash Memory	Nor Flash 8MB

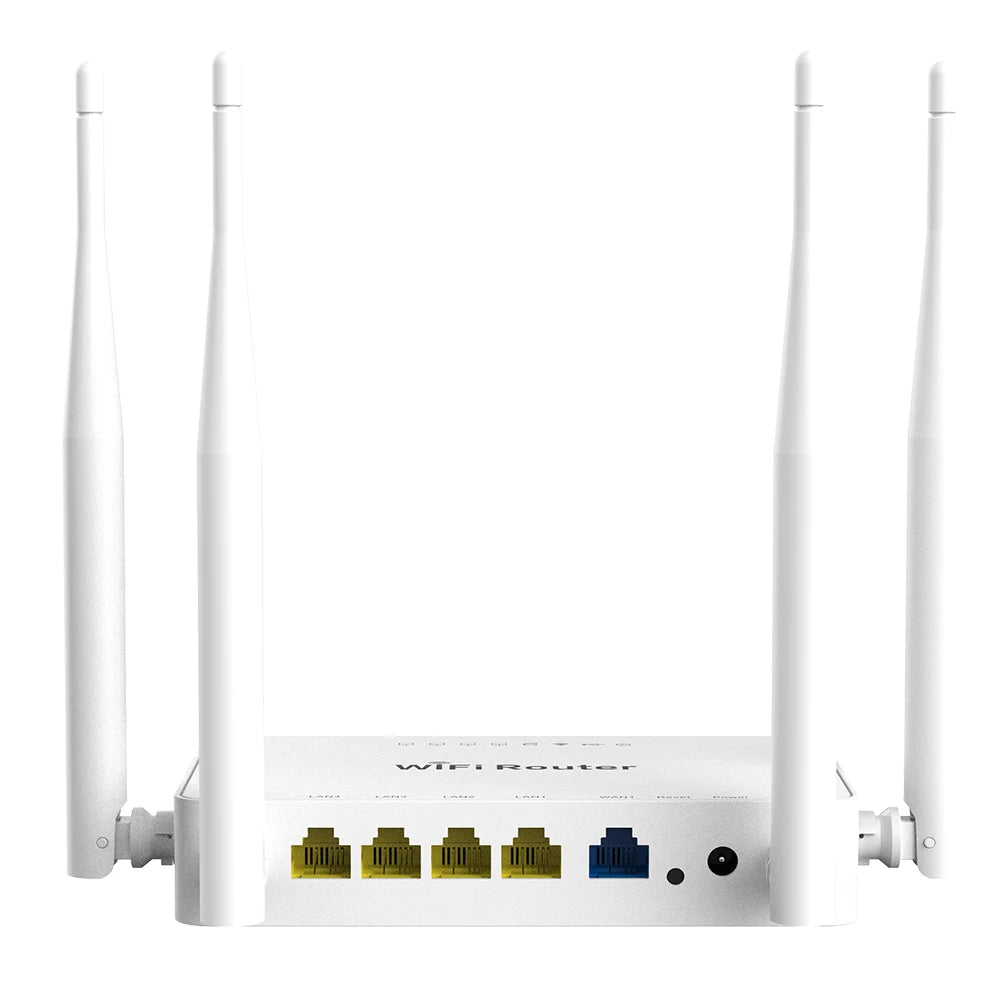

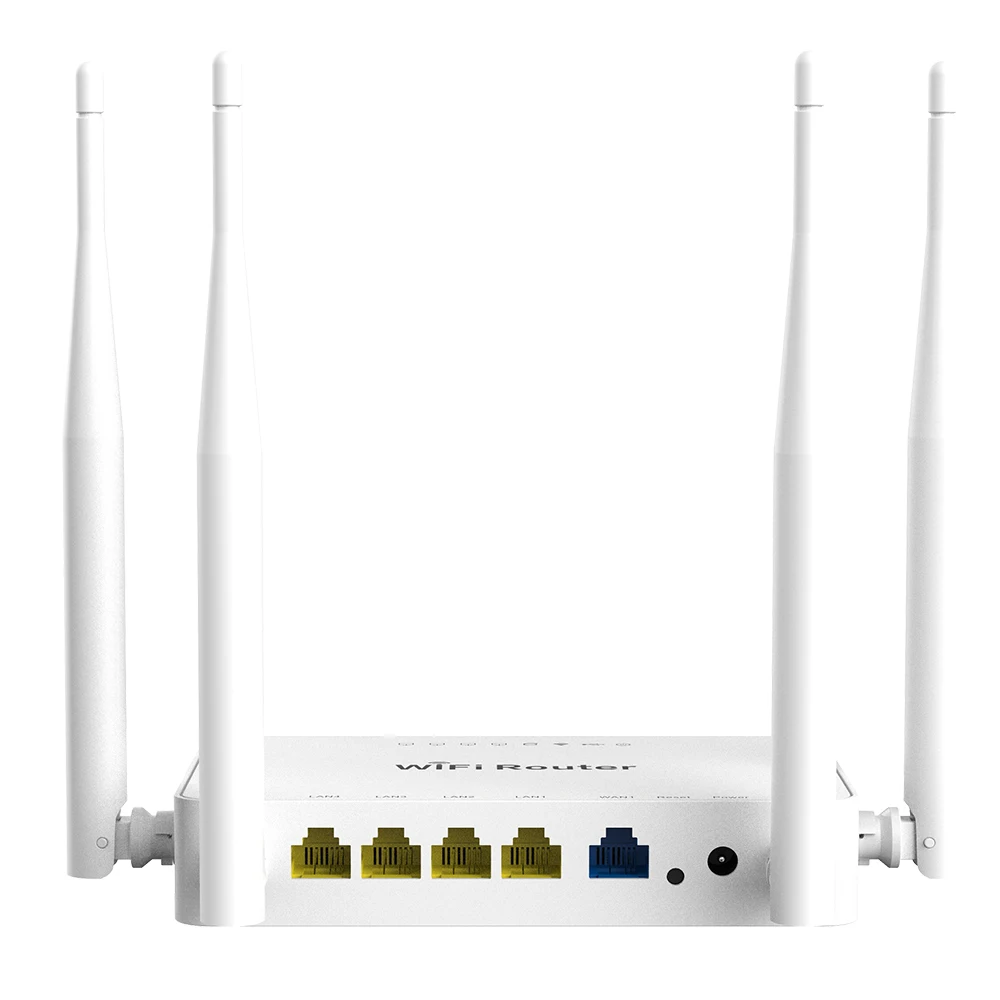

Network port	WAN port 1, 100Mbps supports auto-flip (Auto MDI/MDIX) Complies with IEEE 802.3/802.3u
		LAN port 4, 100Mbps supports auto-flip (Auto MDI/MDIX) Complies with IEEE 802.3/802.3u
Power connector	DC5.0 * 2.1MM interface
Pushbutton	Reset button 1pcs
Antenna	Omni-directional 5dbi 2.4G external antenna 4pcs
USB2.0	1PCS (Support 4G Dongle)

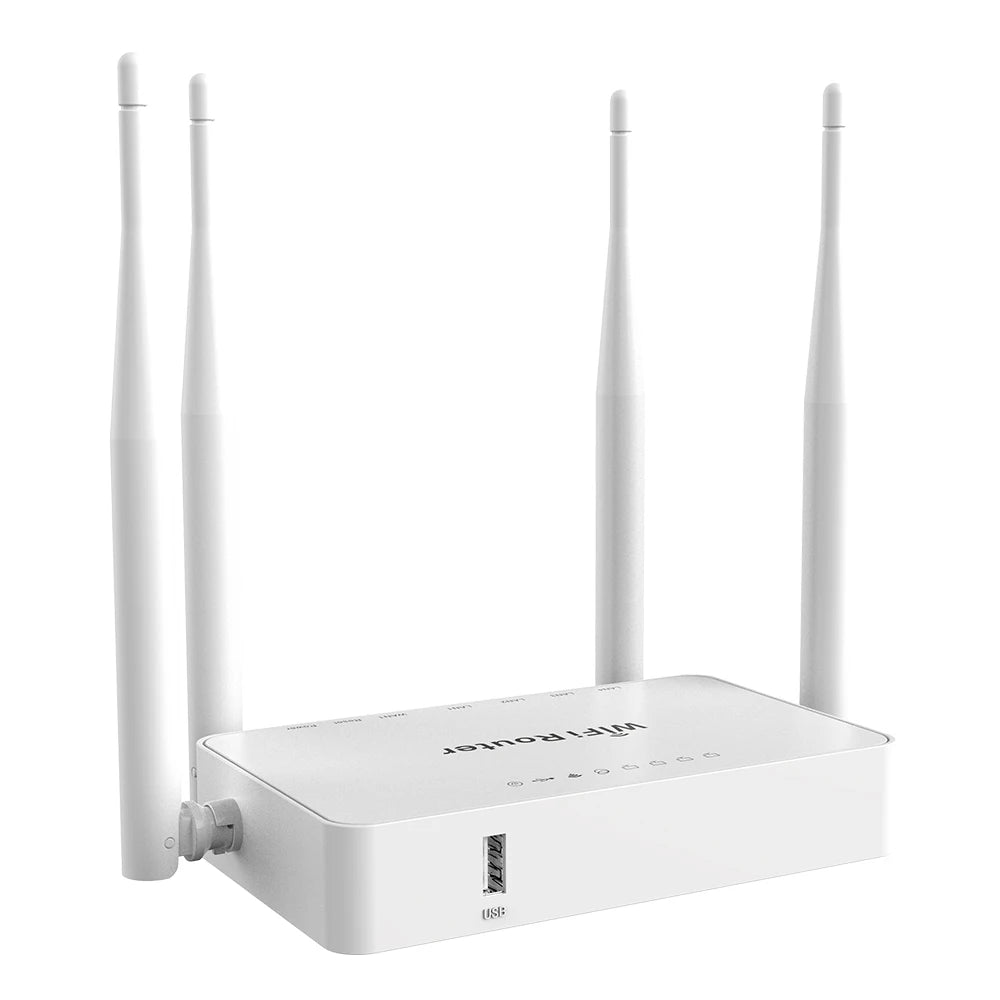

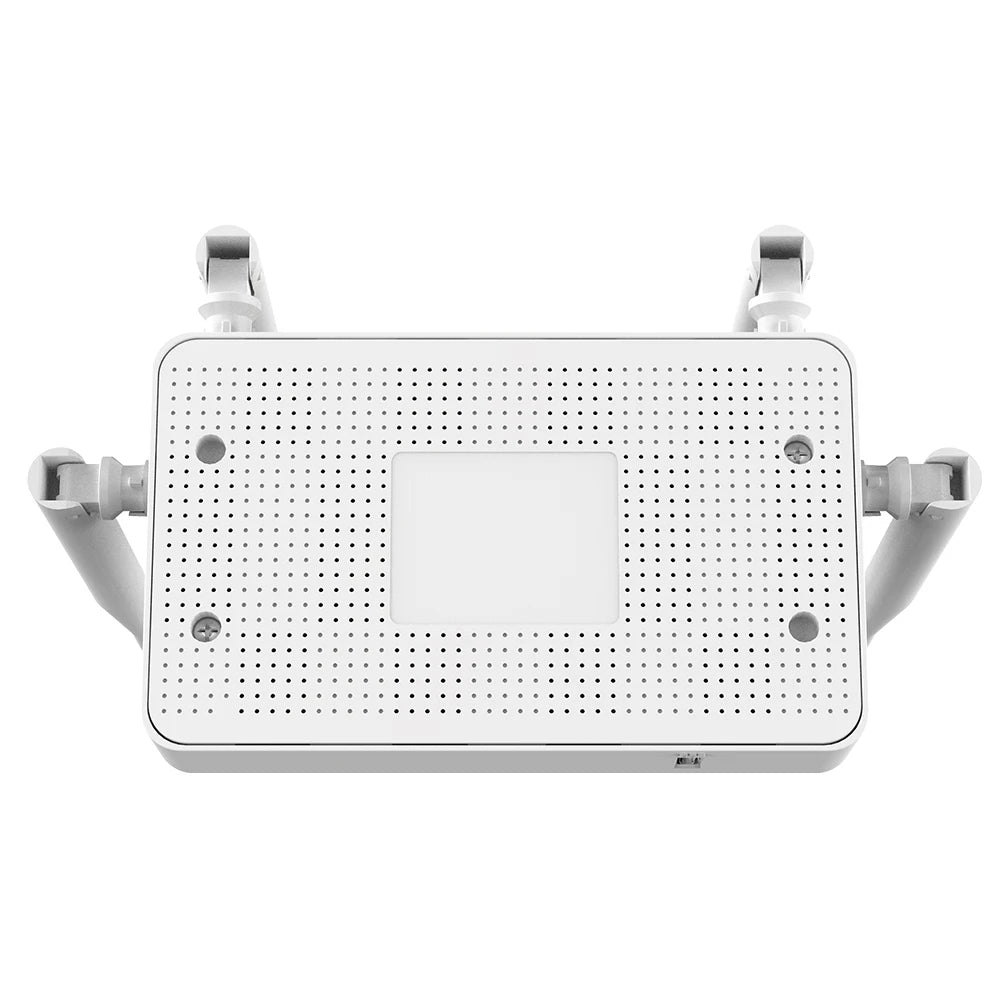

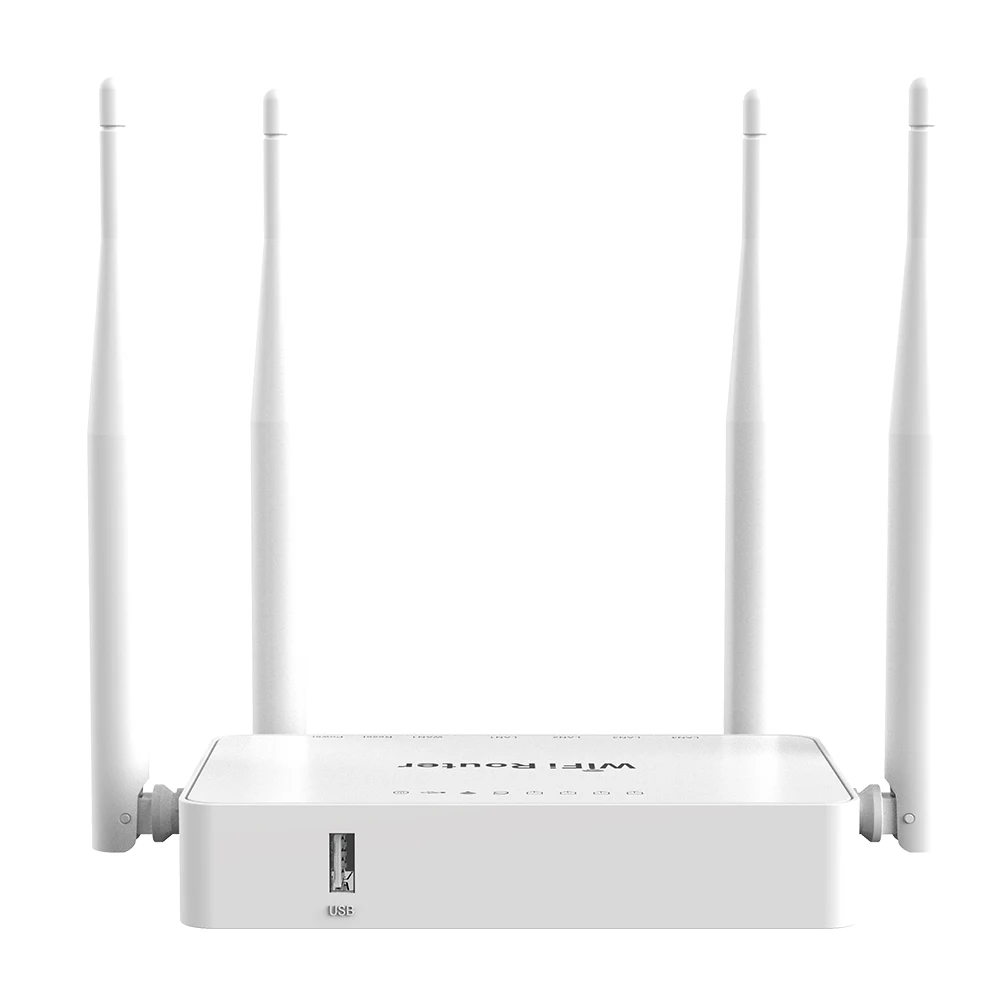

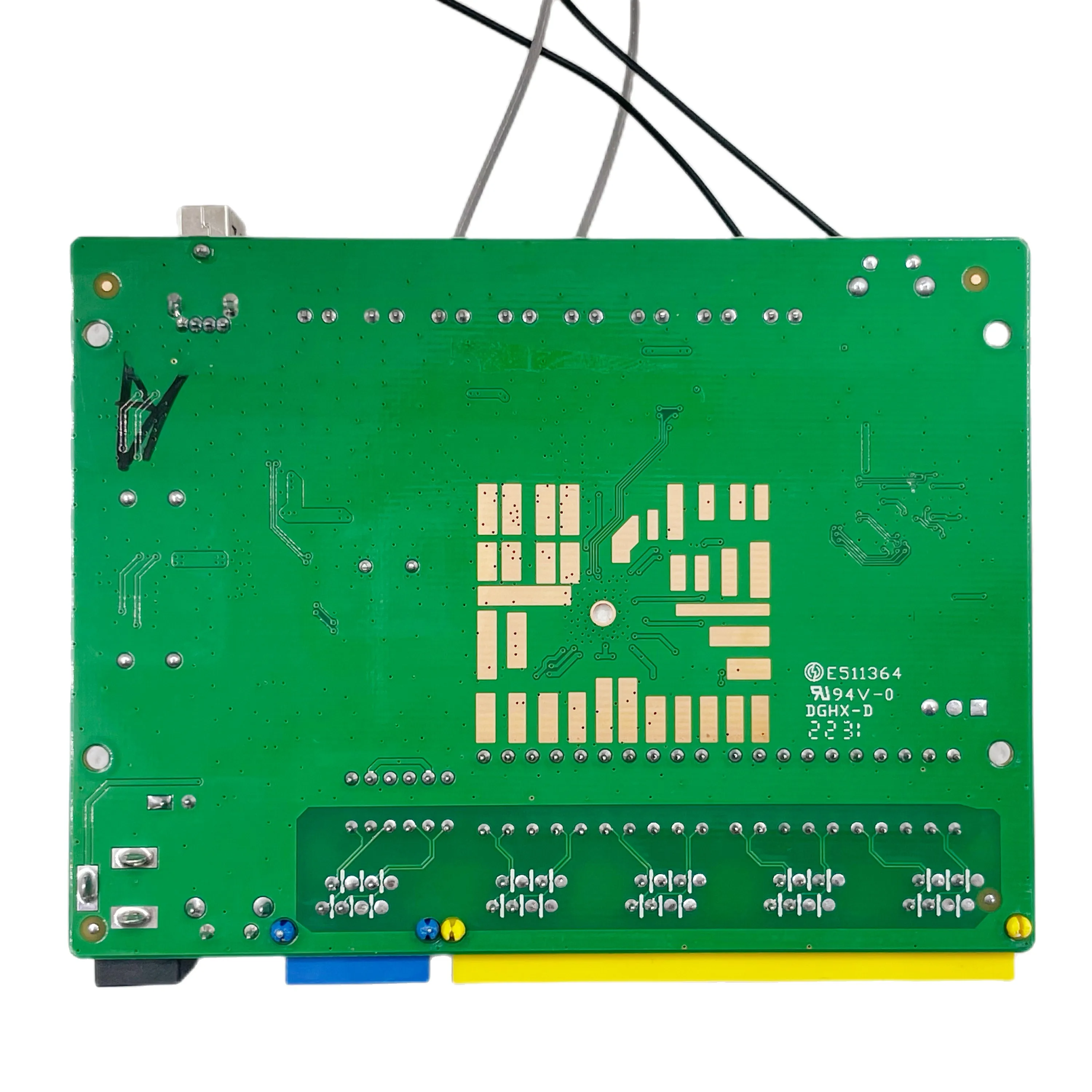

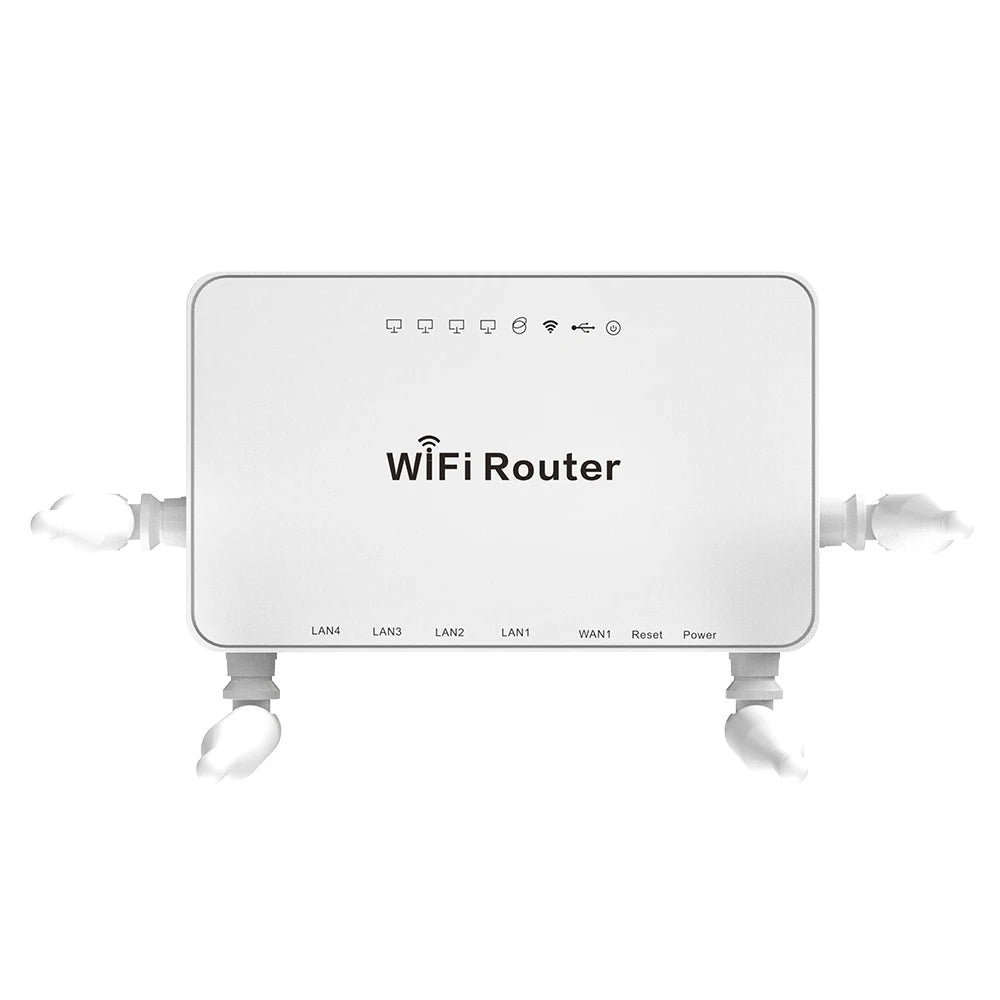

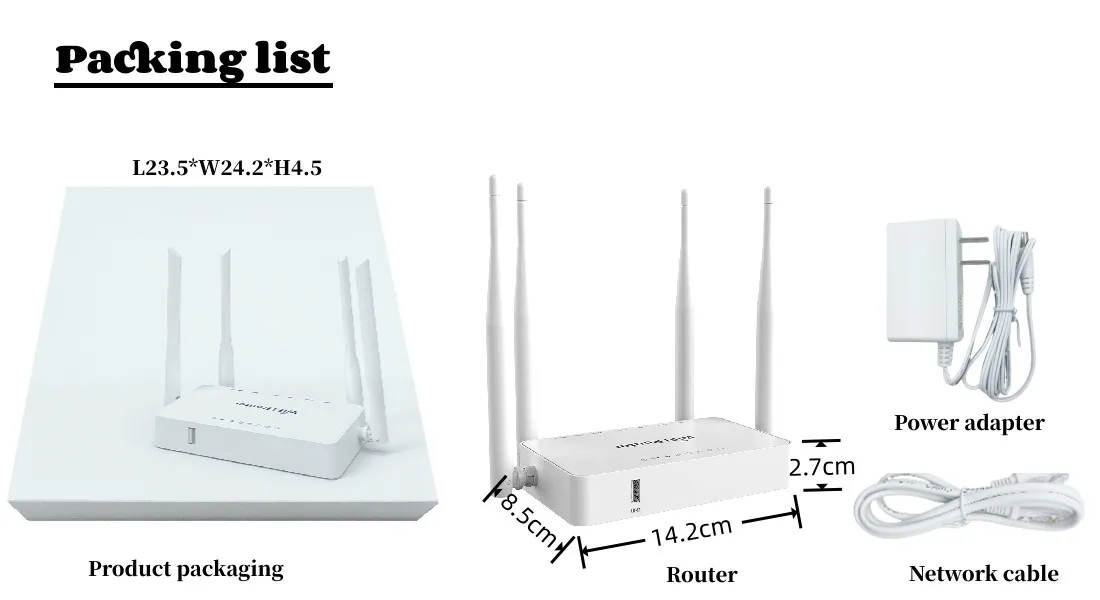

Details Images
